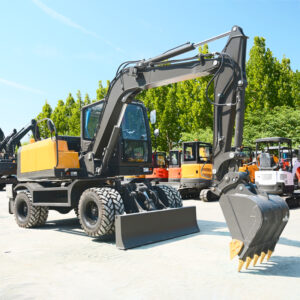

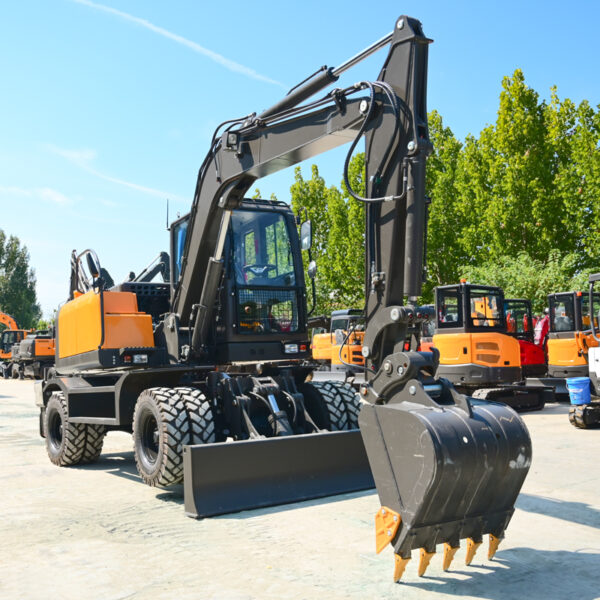

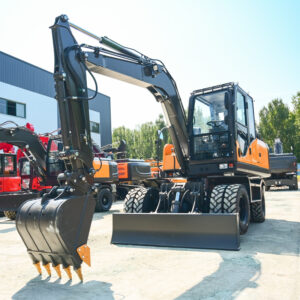

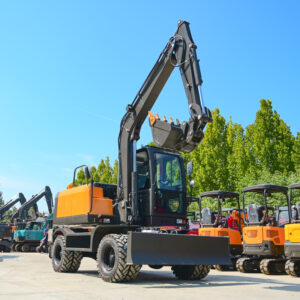

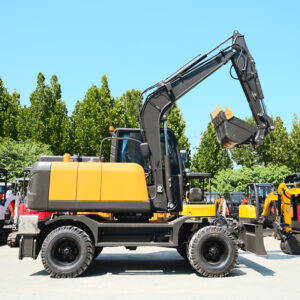

8 ton wheeled excavator
Bucket Capacity:0.21 m’ Max.Bucket Digging Force:45 KN Max.Arm Digging Force:36 KN Engine Model:YC4DK85 Power:62.5 KW Dimension Length*Width*Height:6390X2175X2880mm Minimum ground clearance:260 mm Tail Swing Radius:2080 mm Max.Digging Height:6380 mm Max.Dumping Height:4700 mm Max.Digging Depth:3900 mm Max.Vertical Digging Depth:2700 mm Max.Digging Radius:6300 mm Min.Swing Radius:2400 mm
Built to perform
1. Rapid cycle: Equipped with a load-sensitive hydraulic system, the digging cycle time of the bucket is ≤ 5 seconds (about 6-8 seconds for crawler type). It is suitable for high-frequency operations such as trench backfilling and bulk material loading.
2. Multi-task compatibility: Standardly equipped with 2-4 hydraulic pipelines, it can simultaneously connect hydraulic tampers, spiral drills, etc., to achieve integrated construction of digging, tamping and pressing (such as road base repair).
3. Fuel consumption advantage: Equipped with a 62.5kW level electronically controlled engine, the comprehensive fuel consumption is 15-20% lower than that of 10-ton models.
4. Tire durability: Uses 16-level engineering tires, with a lifespan of 3,000-5,000 hours (additional chain plate protection is required in harsh conditions), and the maintenance cost is only 1/3 of that of crawler-type chassis.
- Availability
- In stock
- Product type
- Compact construction machinery
- Support
- Global parts and technical support
